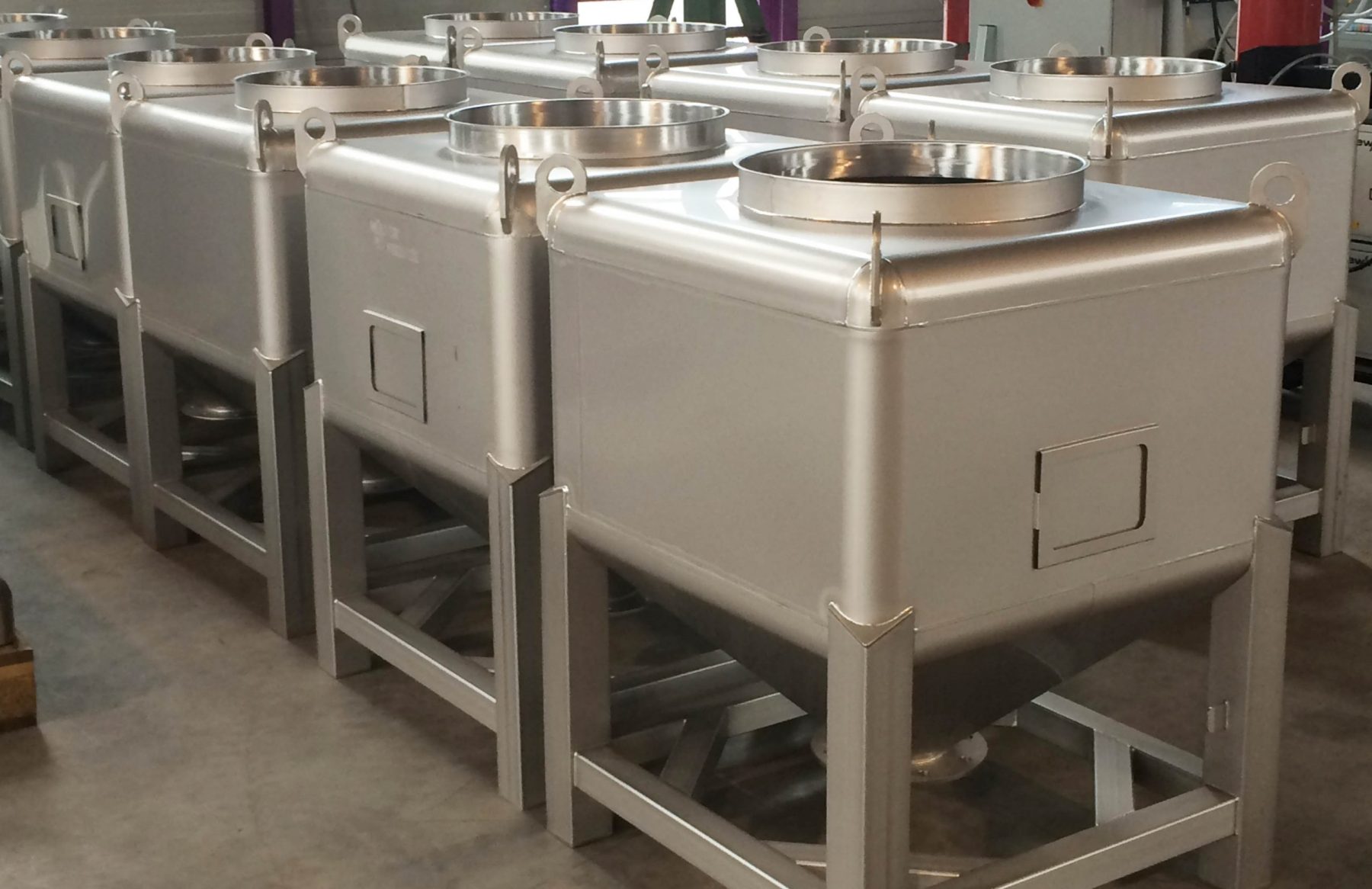

stainless steel IBC Container

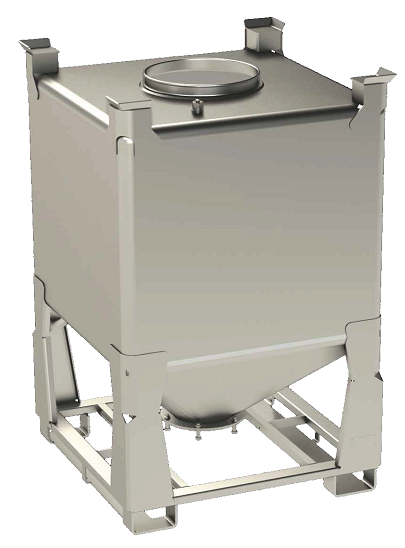

Stainless steel IBC container individually designed

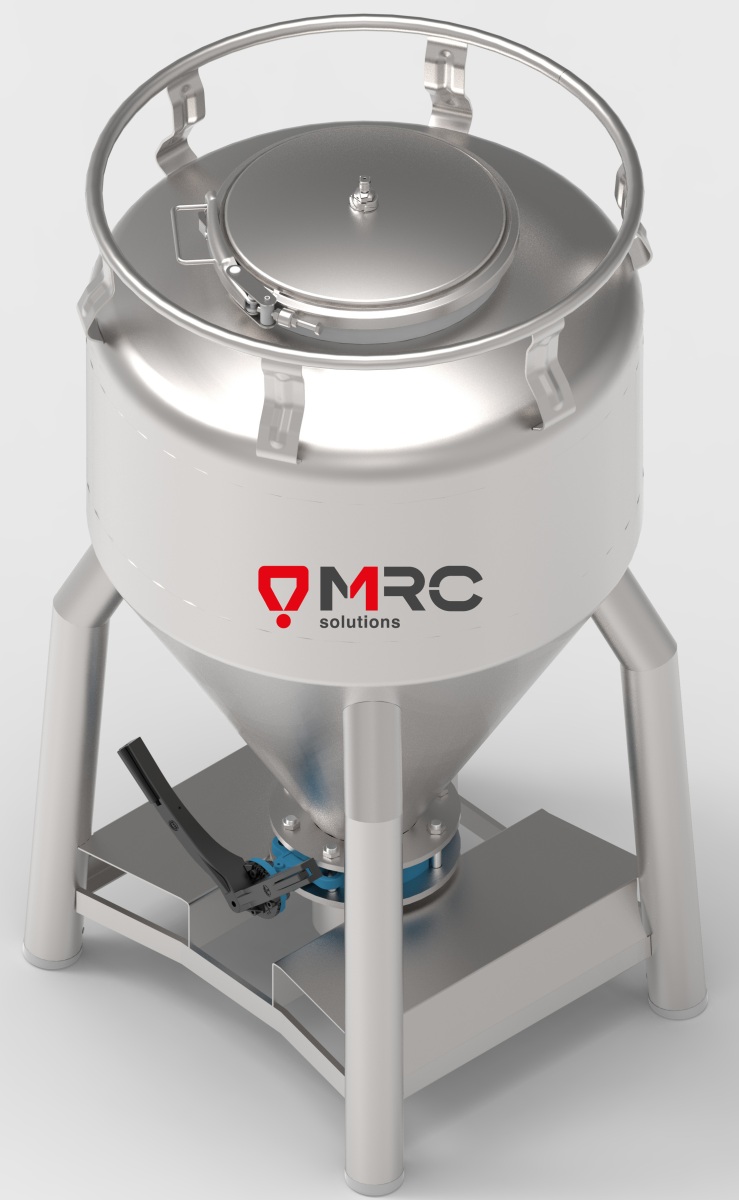

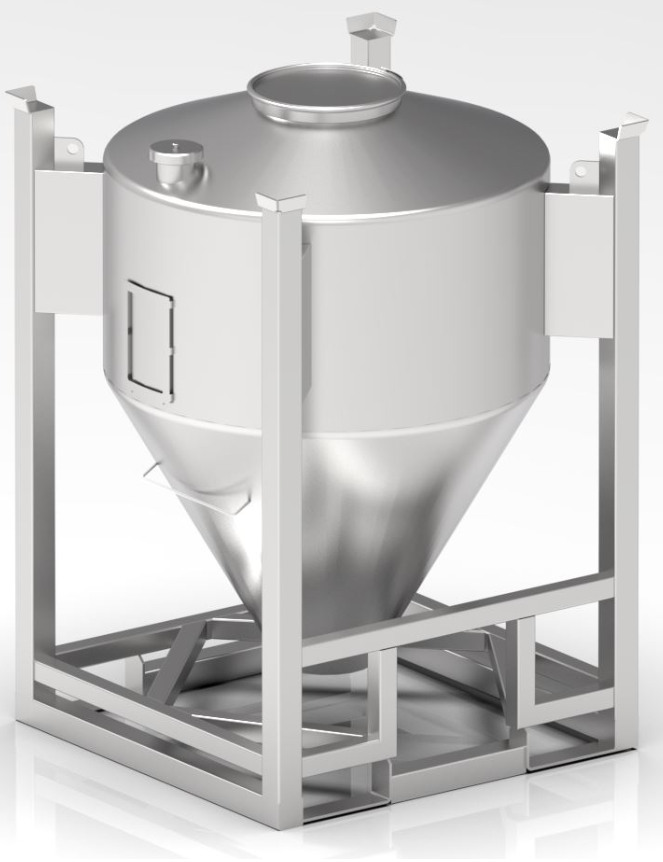

If you need tailor-made stainless steel IBC container solutions, whether round, cubic, cylindrical or any other shape, we have the ideal solution for you. Our great manufacturing expertise make us the ideal partner for your particular application. We develop, design and produce your tank, container, IBC or other customized container.

stainless steel ibc for individual options:

The area of application for IBCs can be equipped with specific accessories such as agitators, fill level measurements, insulation and special coatings. This enables an IBC container manufacturer to develop customised IBC containers for our customers to meet their individual requirements. Special solutions and customised IBC tanks are also part of our range.

If powders, granulars or hygroscopic materials don’t always do what they should? Then you need more than just a valve for an IBC container – you need a sophisticated valve system that adapts to your bulk material. Our stainless steel valves types for bulk solids offer you exactly that safe, hygienic and process-stable handling for  discharge or dosing.

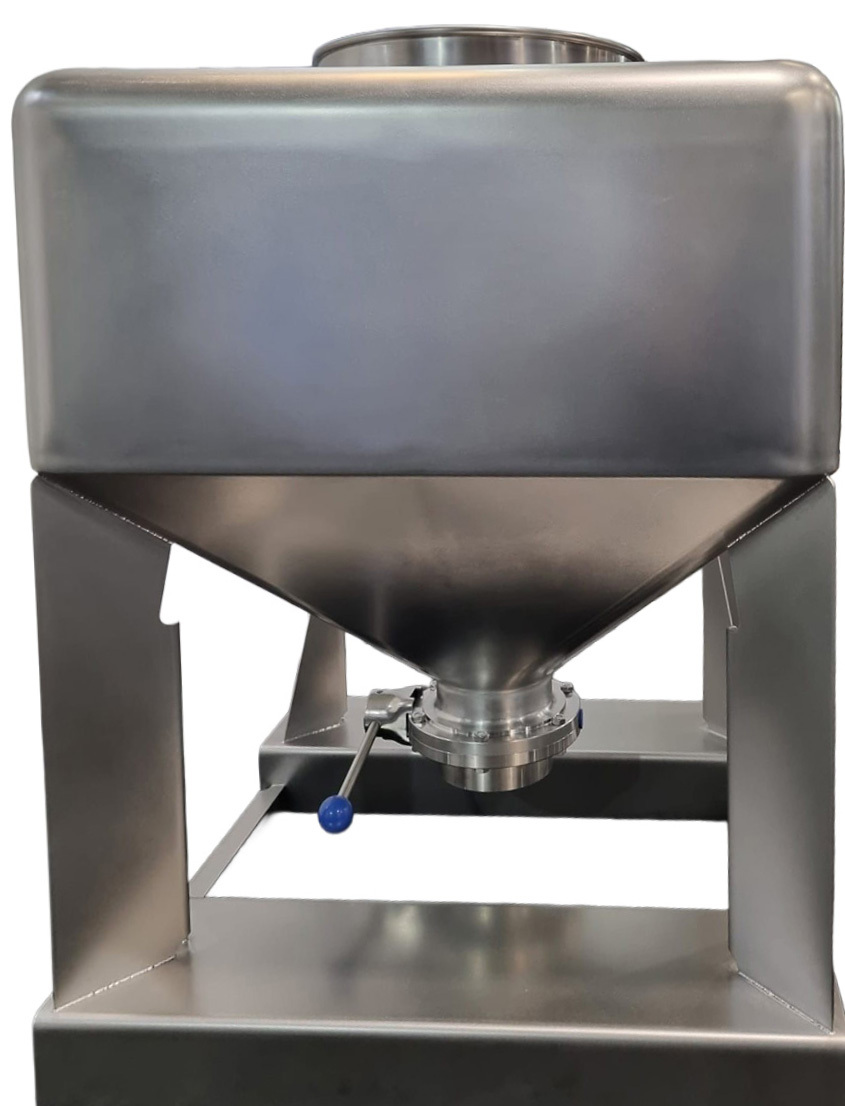

Stainless steel ibc individually designed f.e. as stainless steel food container. Our easy-to-clean manhole lid design, containment valves for dust-free filling and discharge or PE Inliner systems are very important components of these concepts, all parts available as retrofits or spare parts for existing packaging such as metal IBC etc.

Available outlet valves:









Specification examples

Models (butterfly,cone or slide valve)	IBC 500	IBC 800	IBC 1000	IBC 1200	IBC 1500	IBC 2000
Volume of water (litres*)	500	800	1 000	1 200	1 500	2 000
Handling base dimensions in mm	1204 x 1204	1204 x 1204	1204 x 1204	1204 x 1204	1204 x 1204	1204 x 1204
Overall height in mm	1 374	1 567	1 717	1 867	2 067	2 417
Outlet Ø in mm	250	250	250	250	300	300



Design details of our container system:

• nominal volumes 50 Liter up to 3.000 Liter
• dimensions 600 x 600 mm up to 1200 x 1200 mm footprint, customized design upon request
• outlet valve with patented docking unit for dust free powder handling

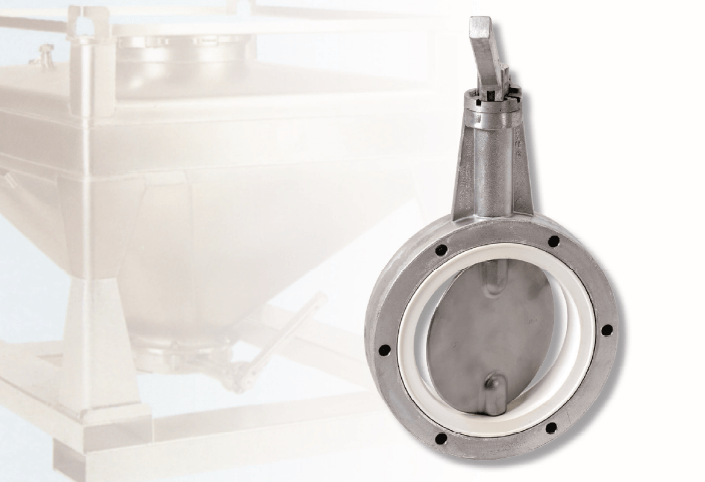

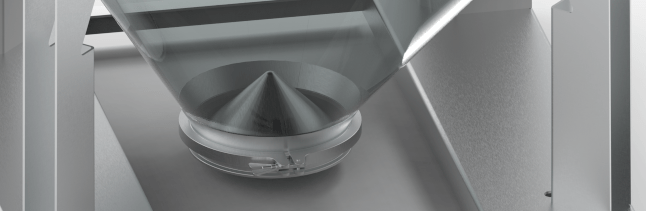

• Easy-to-clean outlet armatures for contained filling/discharge: cone valve DN100/200
  and butterfly valves DN250 and suitable discharge stations
• upon request: DN 250 Dosing Iris Valve, stepless setting of flow diameter, open top
• Safe handling: robust, lockable clamping rings

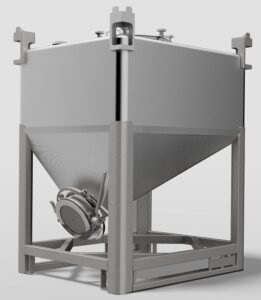

• gentle discharge: sensible media such as tablets, chips, etc.
• retrofit design components: updating of equipment from other manufacturers

Advantages:

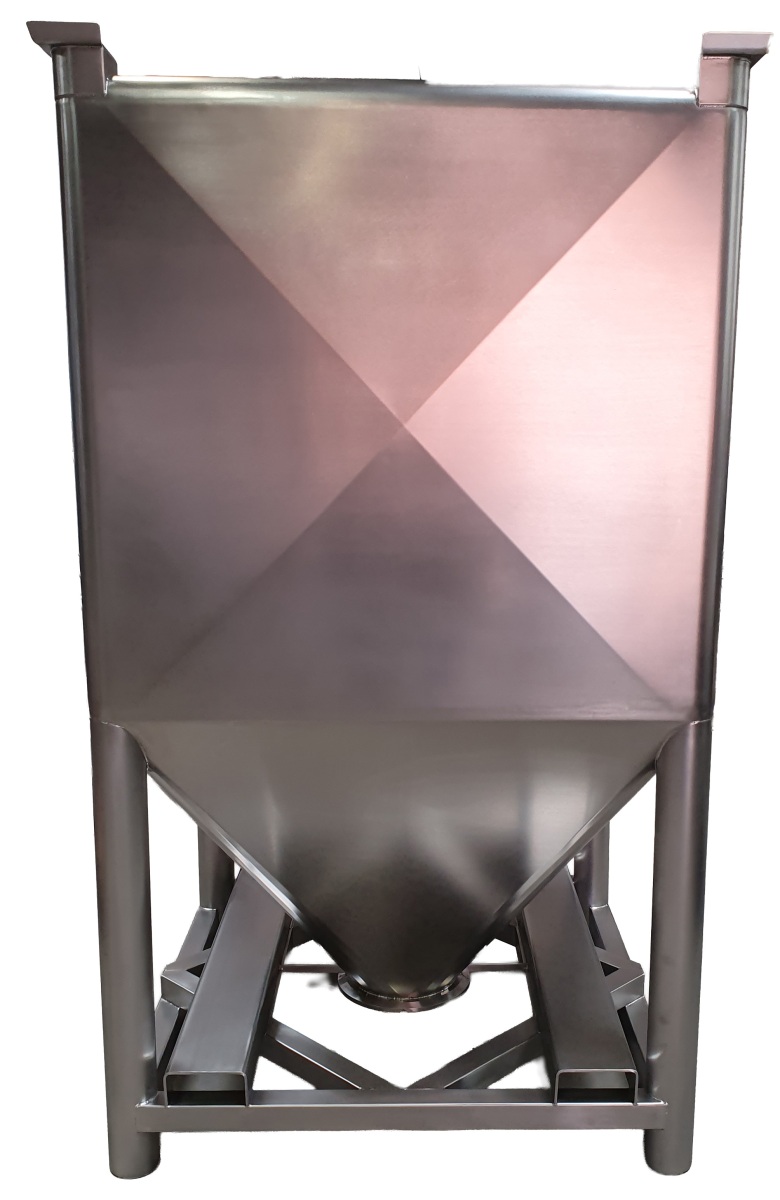

Standard stainless steel IBCs are ideal for aseptic applications or hazardous goods. We design and manufacture customised, high-quality container systems for almost any industrial application. Our diverse product solutions are designed to offer you maximum safety, flexibility and efficiency.

Whether you need to transport liquids, pasty substances or bulk goods, our stainless steel IBCs are the ideal solution for your specific requirements. Additionally all containers could be UN-approved, craneable, rollable and stackable. They can also be expanded with various accessories such as agitators, level gauges, insulation and internal coatings. Tailored to your individual needs.
