PE bag

customized bags with fitting/valves

IBC Inliner

  • assembly of the inliner into IBC within one minute
  • suitable for all common plastic IBC Container Type Schuetz, Mauser etc.
  • complete emptying (depending on medium up to 99%)
  • safe handling: Bag formation or pockets and strain load due to incorrect installation of the inliner are excluded
  • favourable PE Inliner price: Cost for cleaning the IBC are significantly higher
  • optional: antistatic or food-safe FDA EG1935/2004 certified foils available





form welded bag

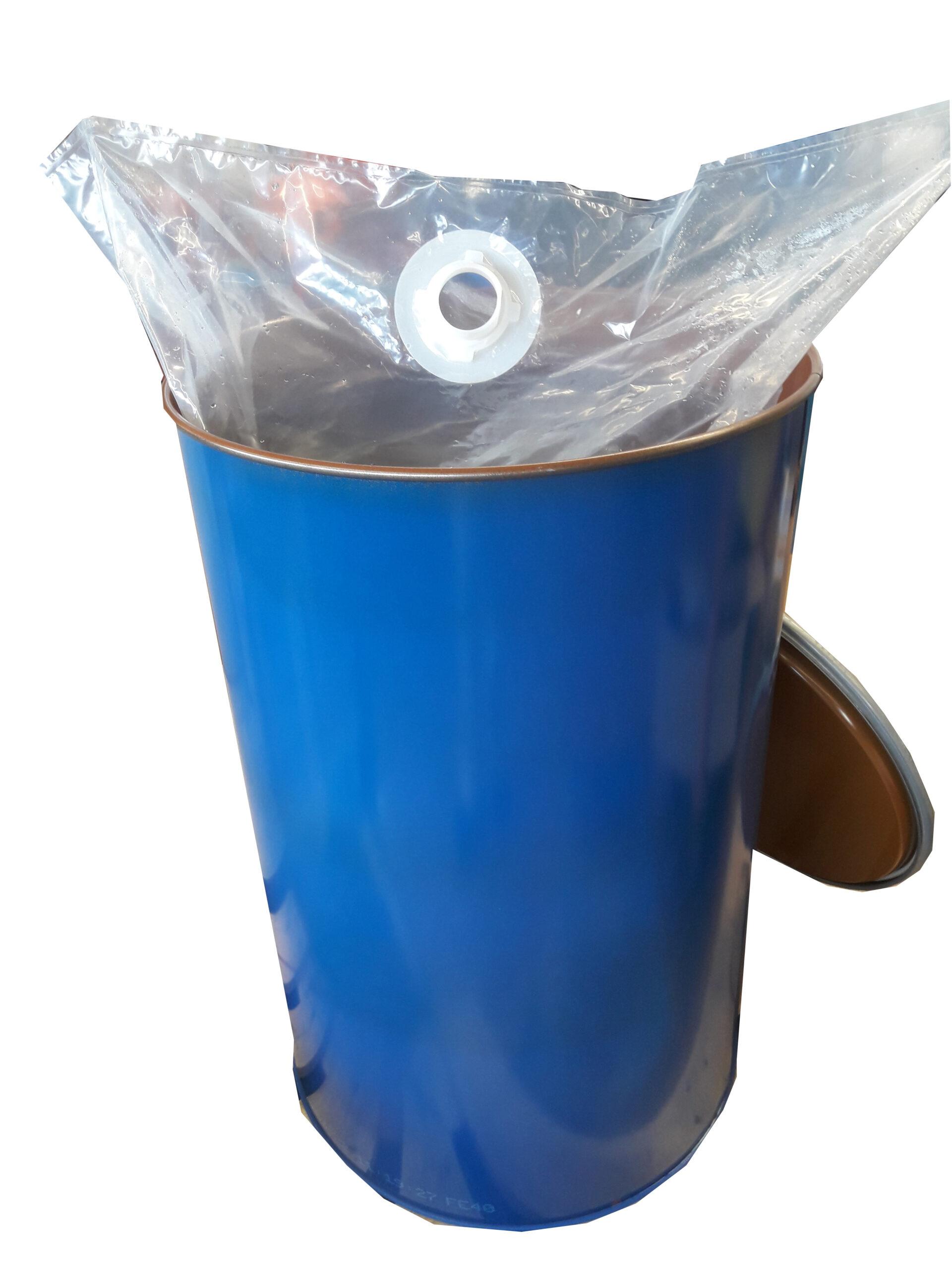

PE Inliner for drums with filling spoutform welded bag with TC connector

NEW: our electrically conductive films are made from a soot compound. The colouring of the film is generally black. The surface resistance is 10 to the power of 4 to 10 to the power of 6 ohms. These special films / bags / sacks etc. are ideally suited for the professional packaging of electronic components such as circuit boards, chips, storage media etc. for transport, storage and shipping. These films are preferred in the production of sensitive materials to avoid deflagrations or explosions caused by static charges. Our film products offer protection against moisture, dust and dirt and are recyclable. On our extrusion or assembly lines, we can produce all the formats you need for your application.

FIBC 1000: Conversion Kit for a standard IBC frame

FLEX KIT,  quick assembly of an IBC to an FIBC:

PE bag for IBC cage frame

components:

1- IBC frame               2-PP mesh bag     3-LD-PE Inliner   4-outlet valve

Easy assembly:

  • fixing  of PP mesh bag (2) within IBC frame (1)
  • set in PE Inliner (3) with outlet valve
  • fixing outlet valve (4) at protection plate

Advantages:

  • economical packaging
  • hygienic
  • no cost for cleaning
  • better discharge than IBC
  • flexible, suitable to all types of IBC such as Schütz, Mauser Sotralenz etc.
  • C-Clip fixing tool for 2″/3″ Outlet Valve
  • nominal volume: 1000 l

PE bag or IBC Inliner for drums, hobbocks, buckets, pots etc.

drum inliner with tri-sure filling nozzle

Drum inliner for single use reactor

standard drum LD-PE Inliner                           drum Bioreactor with single use Inliner system

PE bag and IBC Inliner for process tanks

Inliner for mixing vessels

Dimensions:

The sizes of inliner bags are individually adapted to each tank and available in sizes from 0,5 L up to 1500 L. Filling/ emptying nozzle on top allowing proper filling and safe discharge.

The circumferential liner is fixed at neck ring of IBC manhole or lid of drum. The basic material of the inliner are LD-PE foils, compound foils, thermo formed outlets etc.















Formed Inliner /– thermo formed blow-molded, shaped bottom liner

This PE liner is made from polyethylene in a blow-molded/thermo formed extrusion process. Heated and shaped inliner outlet tools are formed acc. to your tank bottom line so that the inliner fits without pockets or folding effects. The Formed Inliner is designed vacuum pumps discharge or and mixing operation.

 Your benefits:

  • Customized formed inliners are perfectly shaped to outlet bottom of the container to avoid wrinkling or formation of pockets
  • emptying by vacuum pumps: no residues
  • reduced cost: inliners turn your one way into a multi way packaging
  • reduced cleaning cost: Formed Inliners avoid contamination of drum/container
  • useable in reconditioned drums/container


Special sized Big-Bags (FIBC):

Benefits:

  • Individual manufacturing of all round or square shaped big bags with volumes from 10 to 1,000 liters
  • option: PE Inliner customized design, no wrinkling or formation of pockets by using thermo forming tools
  • special filling/discharge armatures avoid dust exposure or odor release
  • upon request: sterilized (PE Inliner e-beamed/X-rayed) available material FDA/EG1935/2004
