Our innovative and hygienic tablet valve for IBC containers or flex bags (FIBC) enable the gentle emptying of fragile media such as pills, tablets and chips with smart clamping ring closures and quick-change seals make daily handling in containers and drums much easier. The closure is crush-free and self-securing. The robust and dead space-free design of the fitting that does not come into contact with the product and the tool-free replacement of the sealing sleeves increase operational reliability, while the dead space-free design increases cleanability and the service life of all components.

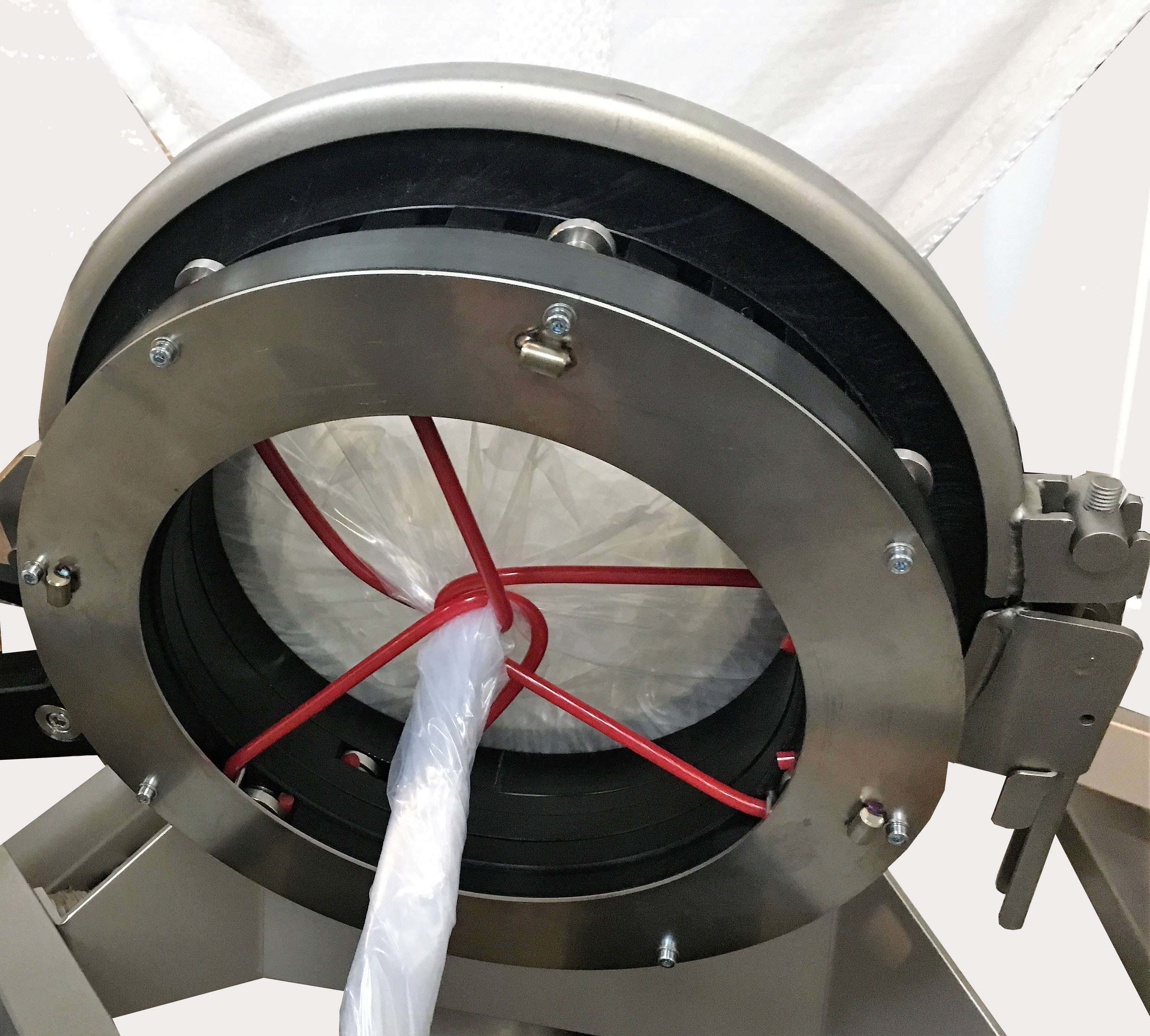

GMP tablet valves: / tablet valve MTV DN200 / DN370
- Assembly of tablet stainless steel IBC Container or FIBC by TC clamp connections
- valve body is not product wetted and may not be cleaned
- easy disassembly: TC locking ring
- FDA LD-PE hose inliner; option sterile FDA /USP, option: Cleanroom class 7 produced
- safety lid: no contamination by atmospehre when transporting or in stocking
- Dosing by stepless setting of lockable handle
Containment Slider tablet valve EZI DN 80/100 /150
- opening of slider: full bore, no reduced space
- containment level OEB5, TC connections DIN/BS/ISO standard
- application: sensitive medium such as tablets, pills, granulars etc.
- material housing PE/PP, gaskets silicon / NBR / EPDM mit FDA / EG 1935/2004

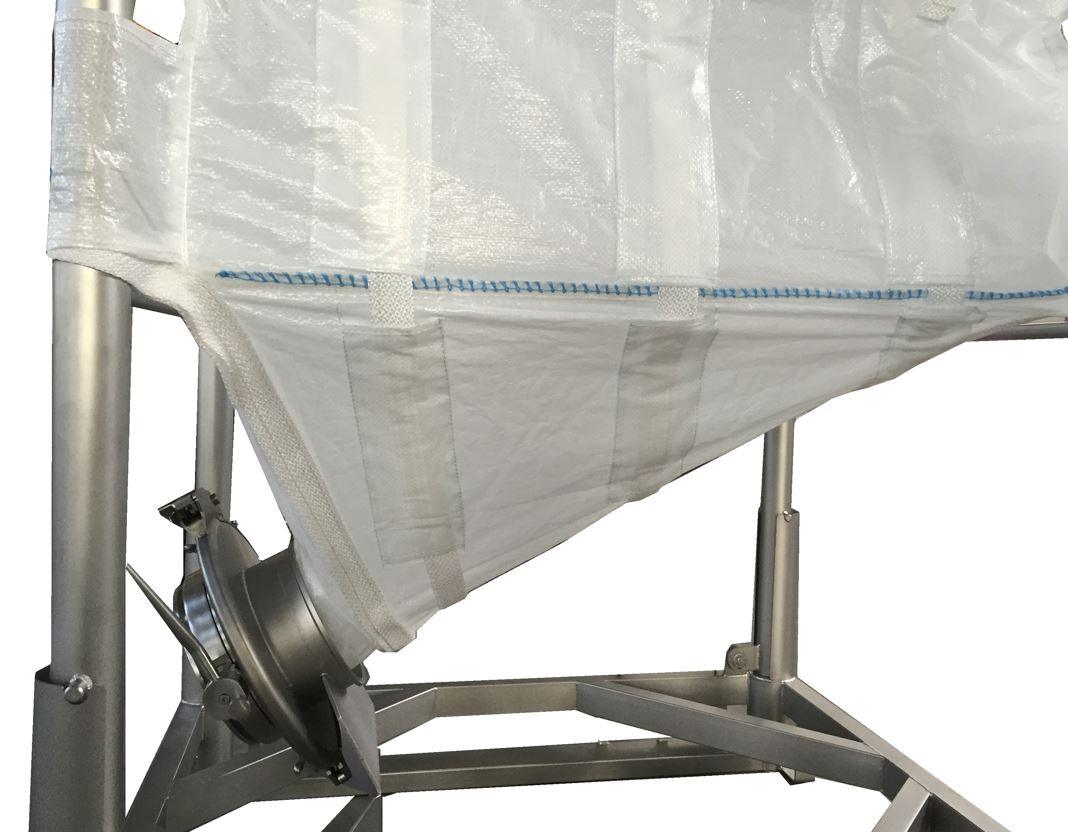

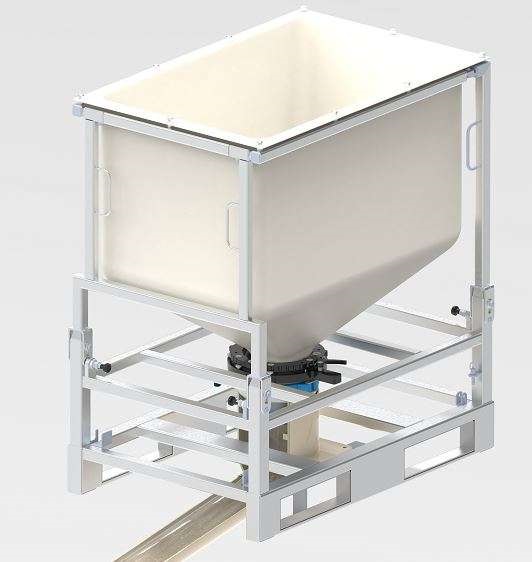

tablet valve MRC lateral FIBC
Our centered or lateral FIBC is an integrated single-use containment system that stands for a smart development of a flexible packaging unit. It complies to all customer requirements related to primary packaging as well as tertiary packaging. It consists of two independent liner systems for flexibility and robustness. The inner liner protects the product from environmental impacts and the outer liner is a protective layer that withstands mechanical stress.
Design:
The multiple liner construction allows manual support of poor flowing product by tumbling. Equipped with the outstanding tablet valve technology it allows various material handling operations under fully contained conditions. The lateral tablet valve FIBC is available from 10L up to 400L and covers all aspects of powder, granule or tablet handling. As an option tle lateral FIBC can be delivered as an approved execution suitable for ATEX zone 1.
Thanks to its cubic 3D shape complete emptying is even under non-atmospheric conditions like downstream of a tablet press (slight negative pressure) easily to realize. In conjunction with a foldable transport frame made of stainless steel is appropriate for transportation from one facility to another.
Advantages of an integral containment system:
- Flexible and robust
- Easy emptying of poor flowing products
- Operation under non-atmospheric conditions
- Primary and tertiary packaging
- Conductive execution available
