Universal laboratory mixer:
Laboratory blender or laboratory mixer as a small powder mixer are suitable for quality assurance, production of small quantities, recipe testing, optimization or development of mixing processes in the scale-up principle. The reproducibility of the results is crucial. These blender are well equipped for pilot facilities and smaller batches. The flexibility results from a unique design, with up to two blending axis mobile or stationary operated with exchangeable blending containers, such as mini container or any cylindrical tank. It can be expanded to an installation for conversion of choppers, spraying systems or NIR systems.

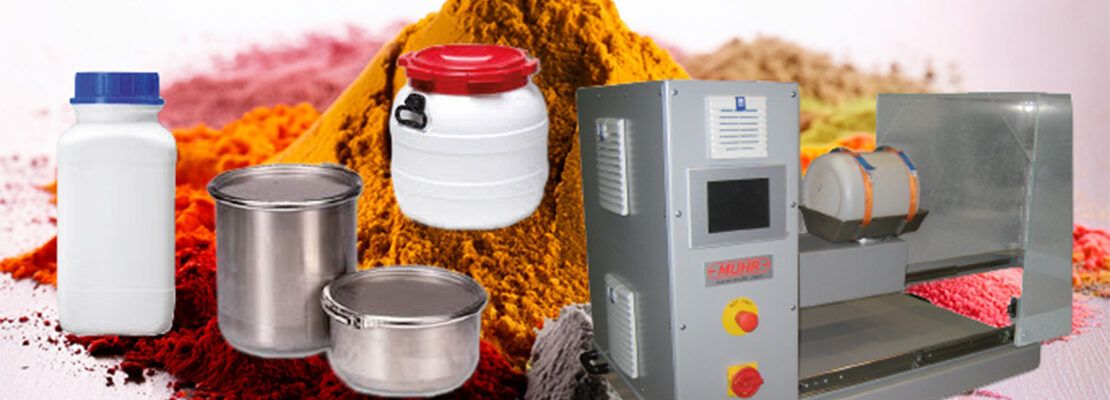

Laboratory mixer with multiple clamping device for plastic drums, bottles, jugs, etc. for the production of mixtures such as plaster, dry mortar, flours, thick and viscous mixes such as sealing and insulating compounds, multi-component plastics, etc.
Advantages of laboratory blender:
- robust mixer housing: Protection by means of non-contact proximity switch
- suitable for mixing tanks up to 30 liters (option: prism container clamp)
- powerful gear motor: maximum batch25 kg
- housing and container clamping device in stainless steel AISI304
- timer display: set and remaining mixing time
- separate speed setting of 2 mixing axis 1 from 0-20 rpm
- power supply: plug 1-phase 230V
Since the mixing tank rotates completely around 2 axes and by a full 360° turn, each particle moves on a spherical orbit within the mixing tank. With conventional 3D shaking mixers, the mix only moves on a flat inclined orbit. This results in a more homogeneous mixture in less time compared to conventional Rhoenrad mixers or tumble mixers. Both axle speeds are independently adjustable.
Features:
- two blending axis: 2D/3D Mixing principle
- batch sizes from 100 g up to 30 kg
- multiple clamp system for mixing bin
- OP terminal with recipe management
MRC laboratory blender are suitable for mixing of smaller batches under production conditions. Mixing Results are reliable for an upscale of the real manufacturing process with set up of parameter such as speed and mixing time which is stepless adjustable.
- Laboratory mixer suitable for batches up to 25 kg Containers
- 3DS technolgy with two separate rotating axis lead to a better mixing effect
- Finish in stainless steel and customer specific version
- Adapter system for use of different mixing tanks
- individual set-up: PLC with touch screen for recipe management
Test your media: On request, we can provide you with a laboratory mixer on loan for experiments in your company. The costs incurred will be calculated according to effort.
