Smart technology for IBC manholes and outlet
Our tablet valves are suitable for a IBC container for a contained transport and stock of powders, pils and tablets as retrofit at standard manhole lids of container, drums, tanks etc. Robust, hinged and self locking rings enable a evenly distributed downforce for an improved sealing effect. The gaskets and locking rings are adapted to the different neck ring diameter of drums and container.
Tablet Valve types
The tablet valve is designed for a safe handling of tablets and capsules. Its valve body made of POM is not product wetted. An easily replacable single use LD-PE Inliner avoids cleaning of the valve body. The valve fits on any stainless steel IBC / FIBC. The hand lever for valve opening is provided with safety locking system.

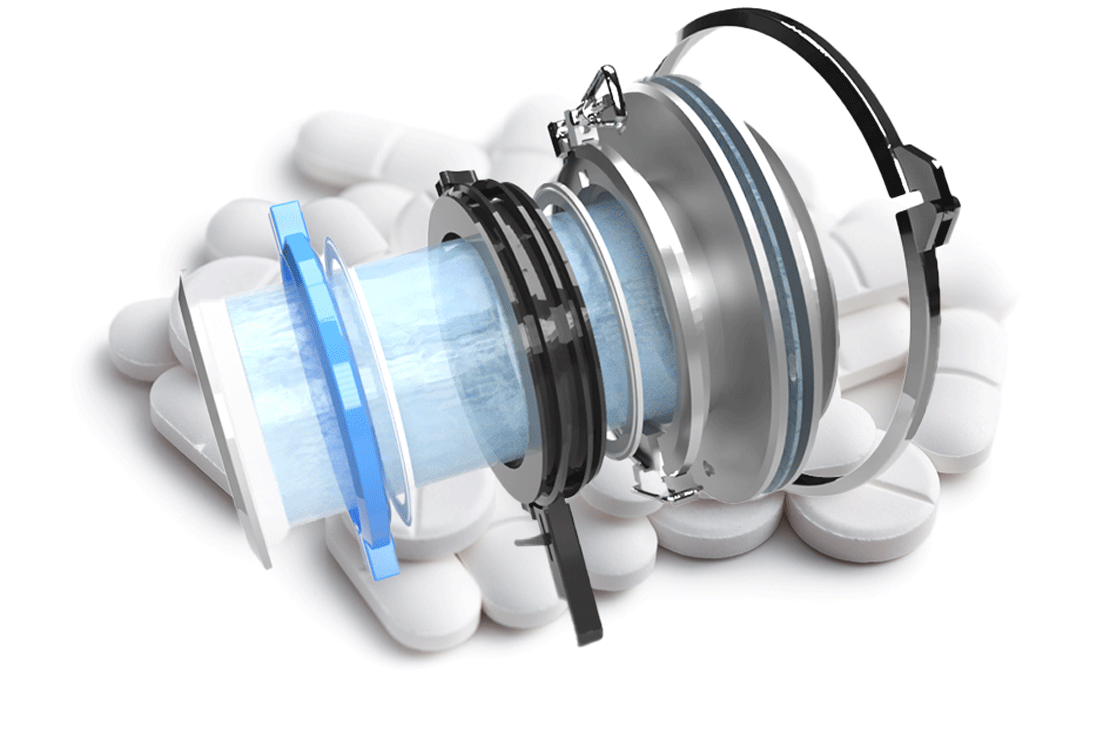

Diaphragma retrofit tablet valves
- smooth and gentle discharge of tablets, pills, capsules etc.
- sizes DN200 / 8″ or DN370 / 14″
- customized TC clamp connection DIN/ISO bewteen tank and valve body
- no special cleaning neccessary: single-use LD-PE hose inliner, clamped and easy assembled
- option: sterile version with FDA / USP certification
- non product wetted parts at valve body
- outlet with dust lid with bajonet locking or gas tight TC blind lid for contamination free handling
- set up of different loop valve diameter for controlled discharge
Cone Valve DN100/250
- TC Clamp connection DIN/ISO/BS, diameter DN 100 – DN150
- material: housing PP/POM/PE, gasket: Silicone with FDA/EU1935 certificate
- Active cone valve: manual operated with saftey clamp or combined with our tablet valve
- tailor made IBC, PE Bags/Inliners in different design available

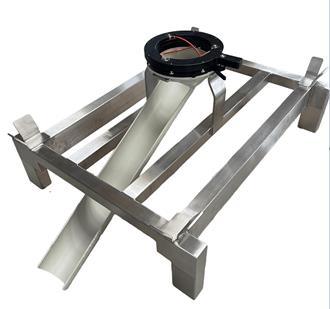

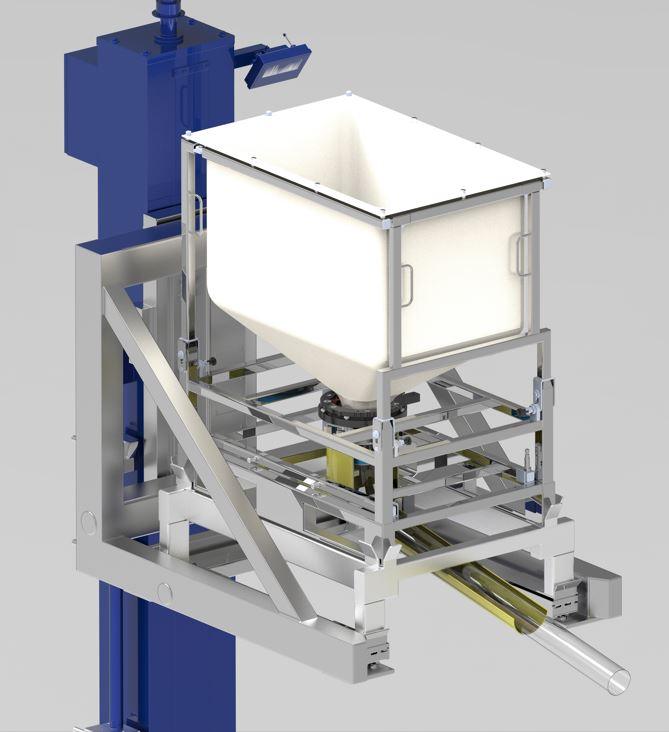

Discharge Station for tablet container dust free handling
Advantages:
- various outlet diameter for container outlet valves available
- loading of container by pallet truck
- dustfree sealing of outlet valve by inflated seal (NBR/EPDM)
- hygienic design acc to FDA /EG 1935 2004 standards
Slider valve DN80-150 for PE Liner
application: contained filling of hazardous or sensible medium (tablets, pills etc.)
- TC Clamp connection DIN/ISO/BS, diameter DN 80- DN150
- material: housing PP/POM/PE, gasket: Silicone with FDA/EU1935 certificate
- Active slider valve EZI: manual operated with saftey clamp or combined with our tablet valve
- tailor made PE Bags/Inliners in different design available
